Antminer Universal Chip Fixture Test Fixture

Antminer universal chip fixture test fixture product detail description

Antminer chips fixture / Antminer test fixture / hashboard tester / Multifunctional test fixture

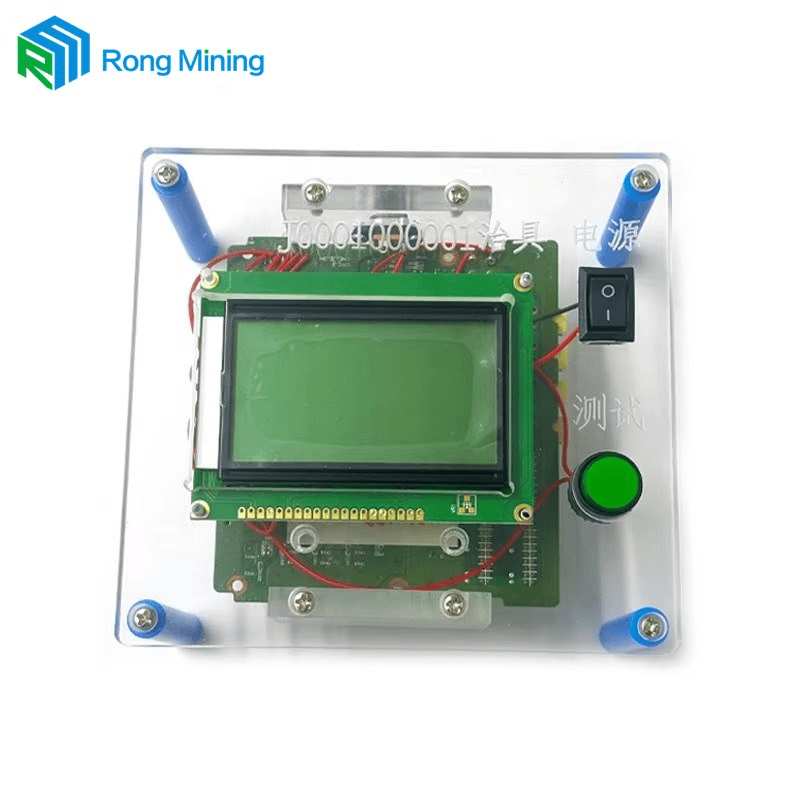

This Antminer universal hash board constant temperature test fixture is used to test the hash board ASIC chip status on the Antminer S21+ Hydro, L9, S21Pro, S21 Hydro, T21, KS5PRO, KS5, KS3, S19Pro Hydro, S19Pro+ Hydro, S21, KA3, HS3, K7, D7, L7, S19kpro, S19XP, S19XP Hydro, S19Pro, T19 Hydro, S19 Hydro, S19jpro, S19j, S19+, S19jpro+, T19, S19, S19i, S17+, S17e, S17, S17pro, T17+, T17e, T17, S15, T15, Z15, S11, S9se, S9k, S9j, S9i, T9+, T9, Z9, Z9mini, S9,  etc. to help us quickly repair and replace hash board chips.  At the same time, the Antminer test fixture is one of the essential tools for repairing the Antminer hash board.

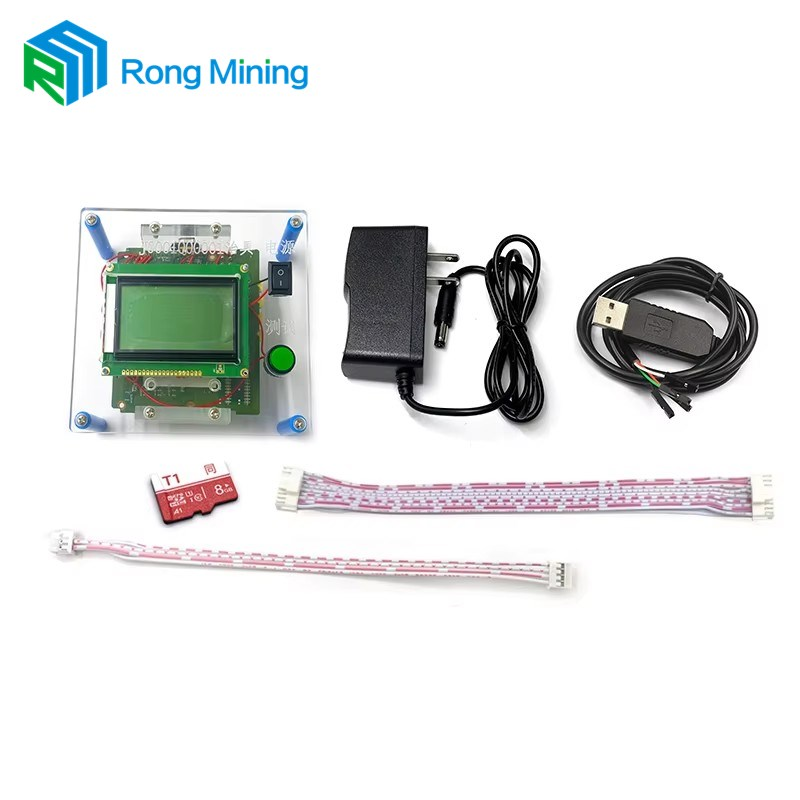

① TF card interface

② Ring 12V power interface

③ Test data line interface

④ Voltage regulation line interface (used when testing combined miners)

⑤ USB—TTL interface

⑥ 12V miner power connector
